When your storefront uses a third-party AdCP-compatible sales agent as an inventory source, Interchange can help you answer two different questions:
  • Is the source set up correctly? Check source status, credentials, advertised capabilities, and compliance.
  • What happened on recent buyer traffic? Inspect recent AdCP calls, responses, task statuses, and failures for that source.
Use both. A source can be configured correctly but still fail a specific buyer request, and a failed buyer request can come from a valid business rejection rather than a broken connection. For external sales-agent sources, also separate live source health from component-cache health. Live health answers whether passthrough discovery or media-buy calls reached the source and completed. Component-cache health answers whether Interchange can read the source’s raw products/components for merchandising without calling the source during buyer-request composition. Cache complaints usually mean the source does not support a usable component response, returned invalid/missing product metadata, has an errored or cold cache state, or cannot refresh because of auth or reachability. Stale-but-usable cached rows are not automatically a failure; they are valid composition inputs when the storefront allows hard-stale OK cache reads. Soft-refresh age is handled automatically by Interchange’s stale-while-revalidate cache path; it does not create a seller action item. A cache complaint does not by itself mean live passthrough is down. Interchange does not make wholesale product or signal catalog requests to every external sales agent. For third-party sales-agent sources, those catalog requests run only when product composition is on for the storefront and the source reports AdCP 3.1+ support. If product composition is off, diagnostics treat the source as pass-through and focus on live buyer-request activity instead of component-cache readiness. When a seller-operated source stays unhealthy long enough to trigger a proactive Murph alert, the alert links directly to this diagnostics surface with the affected source selected. Open that link first, then use the recent activity and developer handoff sections for the partner-safe debug ID, task ID, operation ID, and correlation headers behind the failing calls.

​
Endpoint

GET /api/v2/storefront/inventory-sources/{sourceId}/diagnostics Returns seller-facing diagnostics for one third-party sales-agent or modular inventory source. The response combines the current source setup, recent AdCP activity, test-run evidence, latency rollups, error rates, discovery participation, demand impact, and developer handoff identifiers. New outbound calls include a partner-safe x-scope3-debug-id that also appears in the diagnostics handoff.

​
Request

curl "https://api.interchange.io/api/v2/storefront/inventory-sources/retail-adcp/diagnostics?windowHours=24" \
  -H "Authorization: Bearer $SCOPE3_API_KEY"

​
Parameters

FieldTypeRequiredNotes
sourceIdstring (path)YesStorefront-scoped inventory source ID.
windowHoursinteger (query)NoLookback window for activity and test-run rollups. Defaults to the service window, minimum 1, maximum 720 (30 days).

​
Response

{
  "source": {
    "id": "42",
    "sourceId": "retail-adcp",
    "name": "Retail AdCP Agent",
    "executionType": "AGENT",
    "status": "ACTIVE",
    "agentId": "agent_retail",
    "endpointUrl": "https://sales-agent.example.com/mcp",
    "protocol": "MCP",
    "auth": {
      "type": "bearer",
      "required": true,
      "configured": true
    },
    "capabilities": {
      "tools": ["get_products", "create_media_buy"],
      "products": "supported",
      "createMediaBuy": "supported",
      "updateMediaBuy": "unknown",
      "signals": "unsupported"
    },
    "health": {
      "status": "healthy",
      "lastError": null,
      "lastErrorCode": null,
      "lastErrorAt": null,
      "lastSuccessAt": "2026-06-18T12:45:00Z",
      "lastCheckedAt": "2026-06-18T12:50:00Z"
    }
  },
  "window": {
    "hours": 24,
    "startedAt": "2026-06-17T13:00:00Z",
    "endedAt": "2026-06-18T13:00:00Z",
    "sampledActivityCount": 37,
    "activityTruncated": false,
    "sampledTestRunCount": 4
  },
  "performance": {
    "requestCount": 18,
    "responseCount": 18,
    "exchangeCount": 18,
    "completedCount": 15,
    "failedCount": 1,
    "inputRequiredCount": 1,
    "pendingCount": 1,
    "rejectedCount": 0,
    "timeoutCount": 0,
    "timeoutRate": 0,
    "errorRate": 0.06,
    "inputRequiredRate": 0.06,
    "completedRate": 0.83,
    "latencyStatus": "within_threshold",
    "latencyThresholdMs": 30000,
    "overThresholdCount": 0,
    "staleAsyncResponseCount": 0,
    "p50LatencyMs": 1200,
    "p95LatencyMs": 4200,
    "p99LatencyMs": 4200,
    "unknownLatencyCount": 0
  },
  "comparison": {
    "previousWindow": {
      "startedAt": "2026-06-16T13:00:00Z",
      "endedAt": "2026-06-17T13:00:00Z",
      "exchangeCount": 14,
      "issueCount": 0,
      "timeoutCount": 0,
      "errorRate": 0,
      "p95LatencyMs": 3100,
      "sampledActivityCount": 28,
      "activityTruncated": false
    },
    "issueDelta": 2,
    "timeoutDelta": 0,
    "errorRateDelta": 0.06,
    "p95LatencyDeltaMs": 1100,
    "trend": "new_issue",
    "summary": "New issue pattern in this window: 2 more affected requests."
  },
  "toolBreakdown": [
    {
      "tool": "get_products",
      "exchangeCount": 12,
      "completedCount": 11,
      "failedCount": 1,
      "inputRequiredCount": 0,
      "rejectedCount": 0,
      "timeoutCount": 0,
      "p95LatencyMs": 3600
    }
  ],
  "discoveryParticipation": {
    "calledCount": 12,
    "skippedCount": 0,
    "excludedCount": 0,
    "timedOutCount": 0,
    "skipReasons": []
  },
  "outcomeMix": {
    "returnedProductsCount": 10,
    "returnedNoProductsCount": 1,
    "failedCount": 1,
    "businessRejectedCount": 0,
    "pendingCount": 1,
    "inputRequiredCount": 1,
    "timedOutCount": 0,
    "skippedCount": 0
  },
  "demandImpact": {
    "buyerRequestsAffected": 2,
    "missedProductOpportunityCount": null,
    "notes": [
      "Affected request count includes failed, timed-out, rejected, input-required, and skipped diagnostic attempts in this window.",
      "Missed product opportunity count is not estimated until buyer-side debug demand captures expected product counts."
    ]
  },
  "recentActivity": [
    {
      "id": 98765,
      "timestamp": "2026-06-18T12:45:00Z",
      "tool": "get_products",
      "taskStatus": "COMPLETED",
      "activityType": "response",
      "taskId": "task_123",
      "operationId": "op_456",
      "contextId": "ctx_789",
      "idempotencyKey": "idem_abc",
      "correlationId": "trace_def",
      "initiatorEmail": "s***@example.com",
      "origin": {
        "kind": "live_demand",
        "testRunUid": null,
        "testRunStatus": null,
        "testRunToolName": null,
        "testRunCreatedAt": null
      },
      "isIssue": false,
      "summary": "Returned 5 products."
    }
  ],
  "diagnosis": {
    "severity": "ok",
    "owner": "seller",
    "topCause": "Source is responding within threshold.",
    "issues": [],
    "nextSteps": ["Continue monitoring failed calls and webhook completion."],
    "developerHandoff": {
      "sourceId": "retail-adcp",
      "sourceName": "Retail AdCP Agent",
      "agentId": "agent_retail",
      "endpointUrl": "https://sales-agent.example.com/mcp",
      "latestTaskId": "task_123",
      "latestOperationId": "op_456",
      "latestContextId": "ctx_789",
      "latestIdempotencyKey": "idem_abc",
      "latestCorrelationId": "trace_def",
      "correlationHeaders": {
        "x-scope3-trace-id": "trace_def"
      },
      "latestError": null
    }
  },
  "docs": [
    {
      "label": "Inventory sources",
      "url": "https://docs.interchange.io/v2/storefront/inventory-sources/overview"
    }
  ]
}
The most important response blocks are:
FieldWhat it tells you
sourceCurrent setup state: source identity, status, endpoint, auth, advertised capabilities, and latest health.
windowThe lookback period and how much activity/test-run evidence was sampled. activityTruncated: true means the 200-row sample cap was reached; recentActivity[] shows only the most recent 200 rows, so counts and rates reflect the sample rather than the full window.
performanceRequest/response counts, completion/failure/input-required rates, timeout rate, latency percentiles, and whether latency exceeded the configured threshold.
comparisonCurrent lookback window compared with the immediately preceding equal-length window. Trends are new_issue, worse, improved, recovered, unchanged, or not_enough_data; they describe observed source activity only. Previous-window sampledActivityCount and activityTruncated use the same 200-row sample cap as the current window.
toolBreakdown[]Per-tool outcomes across all sampled calls, including get_products, create_media_buy, updates, and other AdCP tools.
discoveryParticipationWhether buyer discovery called, skipped, excluded, or timed out this source.
outcomeMixWhether calls returned products, returned no products, failed, timed out, waited for input, or were business-rejected.
demandImpactAffected request count plus notes. Missed product opportunity count is currently null until buyer-side debug demand captures expected product counts.
recentActivity[]Most recent calls, responses, task statuses, errors, trace/correlation identifiers, initiator email, sandbox-test/live-demand origin, and summaries.
diagnosisSeverity, owner, top cause, structured issues[] breakdown, next steps, and developer handoff details to share with the source operator.
diagnosis.owner tells you who must act:
  • seller — a generic external sales agent you operate, or an adapter whose credentials need re-authorizing. The topCause and nextSteps are addressed to you.
  • scope3 — an official Scope3-hosted adapter (Pinterest, Reddit, Snap, …) whose runtime is failing. Scope3 operates that runtime; the failure is ours to fix and recovers automatically, so there is nothing for you to do. nextSteps will say so rather than asking you to debug our infrastructure.
diagnosis.topCause is the primary explanation to show first. Use diagnosis.issues[] when more than one signal is present in the same window: for example stale async callbacks, caller-deadline timeouts, slow responses, non-timeout failures, input-required responses, business rejections, skipped diagnostic attempts, missing auth, or inactive sources. Each issue includes a stable mode, severity, affected count, and human-readable summary. Issue mode values use the same source failure vocabulary as the diagnosis model, such as stale_async, timeout_degraded, auth_missing, source_runtime_error, business_rejected, and input_required. comparison.trend is a quick movement signal, not an uptime or SLA claim. It compares sampled source activity in the requested window with the immediately previous window of the same length. not_enough_data means neither window has enough source activity to compare; latency remains unknown when request and response rows cannot be paired.

​
Errors

  • 400 BAD_REQUEST — windowHours is not a positive integer or is greater than 720.
  • 401 UNAUTHORIZED — missing or invalid API key.
  • 404 NOT_FOUND — no inventory source with this sourceId exists for the storefront.
See Errors for the full error contract.

​
Open the diagnostics surface

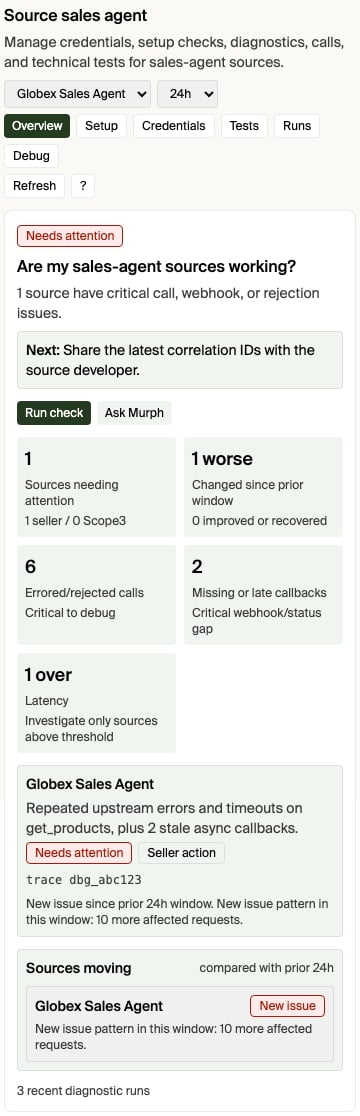

Source diagnostics overview showing a sales-agent source that needs attention, error counts, late callbacks, and the next investigation action
Diagnostics open from the source you are looking at, scoped to that source:
  • From the source itself. In the ad-server or sales-agent source app in chat, use Open full diagnostics. It opens the Source Diagnostics app already focused on the connection you had selected. (The in-app View details / View diagnostics buttons are different — they switch to the advanced tab inside the same source app.)
  • From Pending operations. When a source you operate degrades, it appears in the Sources degraded group of the Pending operations view with its severity and a one-line summary. Each row’s Open full diagnostics opens the Source Diagnostics app scoped to that source.
  • By asking Murph. Ask “why is <source> failing?” or “show me diagnostics for <source>” — Murph opens the Source Diagnostics app scoped to that source. Naming the source focuses the app on it; otherwise it opens on the source you last had selected.
  • From the Help menu. Open Ask Murph, choose Help, then choose Diagnostics for the storefront-wide diagnostics view (change history, debug calls, source tools, test runs).
Choose Show me from a Source Diagnostics announcement, or choose ? in the diagnostics surface, to start the two-minute quick tour. The tour teaches the same operating sequence in every supported chat host:
  1. Start with the question: is this source healthy, what changed, and who acts?
  2. Choose the evidence window. Start with 24 hours, narrow for an active incident, or widen it to confirm a pattern.
  3. Read the overview verdict before inspecting individual calls.
  4. Use Debug for recent calls and partner-safe handoff identifiers.
  5. Take the smallest diagnosed next action, then refresh or run a focused test.
The tour changes tabs and highlights controls, but it does not change source configuration. Any product action keeps its normal safeguards. You can also open Source Diagnostics directly by replacing <account-id> with your account id:
https://interchange.io/<account-id>/murph?view=chat&sellerWidget=source-diagnostics
To focus the app on one inventory source, include diagnosticsSourceId:
https://interchange.io/<account-id>/murph?view=chat&sellerWidget=source-diagnostics&diagnosticsSourceId=<source-id>
Task-level filtering is available inside the app’s recent-call search after it loads; there is not currently a task-id deep link. To open Murph with the right question already drafted, use this deep link:
https://interchange.io/<account-id>/murph?askMurph=third_party_sales_agent_diagnostics
Murph will start from the docs, then inspect your source state and recent ADCP debug calls before deciding whether the issue looks like setup, protocol failure, business rejection, or a missing product diagnostic.

​
Start with the inventory source

Open the storefront inventory source in the app, or call Get storefront readiness. The sourceDiagnostics[] entry for each source gives the current operating picture:
FieldWhat it tells you
sourceStatusWhether the source is active, pending, or disabled.
authWhether the source requires credentials and whether they are configured.
capabilitiesWhether the source advertises support for product discovery, media-buy creation, updates, signals, and wholesale products.
productBuilderWhether the source is classified for composition, passthrough, or unknown; use wholesaleProductCount, signalCount, catalogCacheCold, and declaredUnsupportedIngredients to interpret component-cache readiness. For third-party sales-agent sources, component-cache readiness is evaluated only when product composition is on and the source reports AdCP 3.1+ support.
complianceLatest AAO / AdCP compliance result for the source.
debugSanitized advertised tools, channels, publisher domains, protocol version, billing support, and related capability metadata.
healthCurrent source health, including latest error, latest success, and latest check timestamps when available.
If the source is not active, credentials are missing, or the source does not advertise the tool you need, fix that before debugging individual buyer requests.

​
Inspect recent AdCP activity

For source-specific traffic, use Ask Murph > Help > Diagnostics > Debug calls and ask about the inventory source by name. Murph can inspect recent third-party sales-agent activity for the caller’s storefront: requests, responses, webhook/status changes, task IDs, task statuses, and sanitized payloads. You can ask for a specific time range (“last 2 hours” or an ISO start/end window) or provide a debug/correlation ID from x-scope3-debug-id, traceparent, x-request-id, operation ID, task ID, context ID, or idempotency key. The diagnostics surface also exposes a bounded, redacted details panel for recent calls. Use it when a sales-agent developer needs the technical handoff: the observed time, operation/task identifiers, outbound request endpoint, partner-safe headers, and request body when those were captured, plus the response or error payload. The displayed headers are limited to debugging and correlation values such as x-scope3-debug-id, traceparent, and x-request-id; authorization headers, cookies, credentials, tokens, signed URL parameters, and email addresses are redacted before display or copy. This is the right path for questions like:
  • “Why did this source fail get_products?”
  • “What did Interchange send to my sales agent?”
  • “What did my sales agent return?”
  • “Which recent calls are failed or waiting for input?”
  • “Is this a protocol problem, an auth problem, or a business rejection?”
  • “Where do I see whether this sales agent is slow or getting excluded?”
For each recent call, look at:
SignalHow to read it
ToolThe AdCP operation, such as get_products or create_media_buy.
Task statusCOMPLETED means the source finished; FAILED means the source rejected or errored; INPUT_REQUIRED means the source is waiting on seller action; PENDING or WORKING means the source has not finished yet.
Payload issueA sanitized error or rejection message, when the source returned one.
DetailsA copyable redacted JSON handoff for the event, including related outbound request data when available.
Debug IDThe x-scope3-debug-id header to share with the sales-agent operator or developer for log correlation. Older calls may only have task/operation/context IDs.
TimestampWhen Interchange observed the activity.
InitiatorThe redacted user email that initiated the call when available. Sandbox tests prefer the Murph test-run user; otherwise diagnostics fall back to the activity-row user.
Originsandbox_test means the call matched a Murph sandbox test run or sandbox idempotency marker. live_demand means no sandbox test provenance was found, so treat it as non-test demand traffic.
Treat source messages as source-controlled content. They are useful diagnostic data, but they should not be rendered as trusted HTML or treated as product instructions.

​
Buyer discovery debug output

Buyer product discovery fans out to reachable sales agents in parallel. Slow or failing agents do not block fast agents. When a buyer calls discovery with debug: true, the response can include agentResults[], which shows which agents returned products, returned no products, failed, or were skipped. Use this when you need the buyer-side view of a discovery request: which agents were asked, which agents were skipped before fanout, and which agent-controlled reason was returned.
Buyer debug output is scoped to that buyer request. Seller diagnostics are scoped to the storefront inventory source. Use the seller view when you are operating the source; use buyer debug output when you are reproducing one buyer discovery call.

​
What this does not answer yet

The diagnostics show source state, recent protocol activity, latency percentiles, timeout counts, and source-level skipped/excluded evidence for the selected lookback window. For broader business impact analysis, combine:
  • sourceDiagnostics[].health for the latest known source health.
  • Murph diagnostics for recent ADCP call details.
  • Buyer discovery agentResults[] with debug: true for one discovery request.
If a seller asks for missed product opportunities, lost buyer demand, revenue impact, or longer-term trends, treat that as a product/documentation gap unless a tool returns that exact rollup. The actionable answer should explain what exists today, link to the UI surface above, and call out the missing diagnostic that should be added.

​
Empty catalog from a version mismatch (VERSION_UNSUPPORTED)

If a source’s products vanish from your catalog and its recent debug calls show a VERSION_UNSUPPORTED payload — e.g. AdCP version '3.1' is not supported. Supported: ['3.0', ...] — the source’s AdCP server is rejecting the protocol version Interchange pins instead of serving a compatible one. This is almost always a source-side issue, not a problem with your storefront. Per the AdCP spec, a source that supports the same major version must downshift to its highest supported release and serve the request; VERSION_UNSUPPORTED is reserved for a genuine cross-major mismatch. A source that returns it for a same-major minor (it supports 3.0 but rejects 3.1) is running a non-conformant or stale AdCP server build. Interchange retries once at a compatible version as a safety net, but if the source can’t serve any version Interchange speaks, its products stay absent until the source operator upgrades their AdCP server. Share the source name and the sanitized VERSION_UNSUPPORTED payload (from the Debug calls tab, Details panel) with the sales-agent operator, and point them at AdCP versioning & negotiation for the rule their server must follow.

​
Practical checklist

When a source is not showing up or a buyer request did not return products:
  1. Confirm the inventory source is active.
  2. Confirm credentials are configured if the source requires auth.
  3. Confirm the source advertises the needed capability, especially get_products for product discovery.
  4. Check source health for the latest error, success, and check timestamps.
  5. Ask Murph to inspect recent debug calls for that source.
  6. If reproducing a buyer discovery request, run discovery with debug: true and inspect agentResults[].
  7. If the failure is still unclear, share the source name, task ID, timestamp, and sanitized error with your sales-agent operator or Scope3 support.
